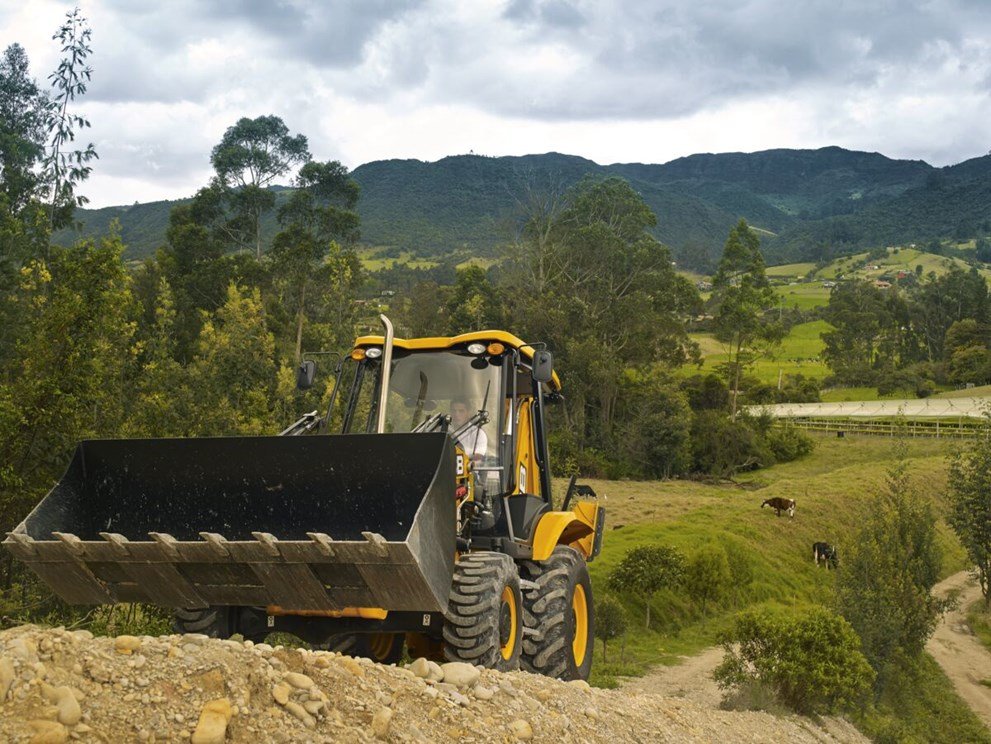

JCB - 3CX-14 Super Backhoe Loader

A DRIVETRAIN WITHOUT COMPROMISE

The 3CX-14 Super features a JCB EcoMAX engine, designed and built by JCB, and tested for 110,000 hours in 70 different machines across the toughest applications and environments.

// For ultimate loading performance, productivity and road travel efficiency, the 3CX-14 Super is available with either a 91 hp (68 kW) JCB EcoMAX engine that produces 319 lbf (433 Nm) of torque or a 109 hp (81kW) JCB EcoMAX engine that produces 381 lbf (516 Nm) of torque.

// The JCB TorqueLock system is standard-fit on all Autoshift 3CX-14 SUPER model, enabling savings of up to 25 percent on fuel and 10 percent on road travel time when matched with the JCB optional 6-speed Autoshift transmission.

// A limited-slip differential in the 3CX-14 Super delivers superior traction and performance, as well as reduced tire wear.

INNOVATIVE HYDRAULICS

The JCB 3CX-14 Super features a variable flow hydraulic pump that delivers high hydraulic flow and pressure at low engine speeds, for improved fuel economy, reduced carbon emissions, lower engine wear, and extended refueling intervals.

// The optional hand-held tool circuit adds to the versatility of a JCB 3CX-14 Super by adding a power source for handheld tools, such as drills, breakers, cutters and even water pumps.

// The 4-cylinder, self-leveling loader on the JCB 3CX-14 Super automatically adjusts the bucket on both the raise and lower cycles, and provides unobstructed front bucket visibility, especially when loading at height.

// JCB's hydraulic quick hitches mean that changing an attachment on the 3CX-14 Super is quick and safe.

QUALITY WORKPLACE

The 3CX-14 Super is designed to minimize operator fatigue and enable greater productivity. The climate-controlled, positive-pressure cab is rubber-mounted and isolated for low noise and vibration, and features 14 air vents for a comfortable operator environment.

// The LCD panel in the cab of the JCB 3CX-14 Super details machine hours, service information, fuel levels and system warnings.

// Ergonomic seat-mounted joystick controls provide fingertip control, great comfort and the ability to face the side of the machine while using the excavator-end to the side of the machine.

// A 360-degree view from the operator position of the JCB 3CX-14 Super enables enhanced comfort, productivity and safety. When excavating, an innovative one-piece, scoop-design rear windshield enables an unobstructed view.

LESS SERVICING, MORE SERVICE

Daily checks are performed automatically upon key-on by JCB’s innovative AutoCHECK system. In less than three seconds, the 3CX-14 Super automatically reviews eight under-the-hood checkpoints and provides a green light to start working, or advises if attention is needed.

// The JCB EcoMAX engines that are available with the 3CX-14 Super requires no replaceable DPF (Diesel Particulate Filter), which eliminates productivity-sapping regeneration and ensuring easier and less costly servicing and less downtime.

// The rustproof fuel tank on the 3CX-14 Super protects the fuel injection system, and the rustproof, composite cab floor features molded water channels for easy cleaning.
